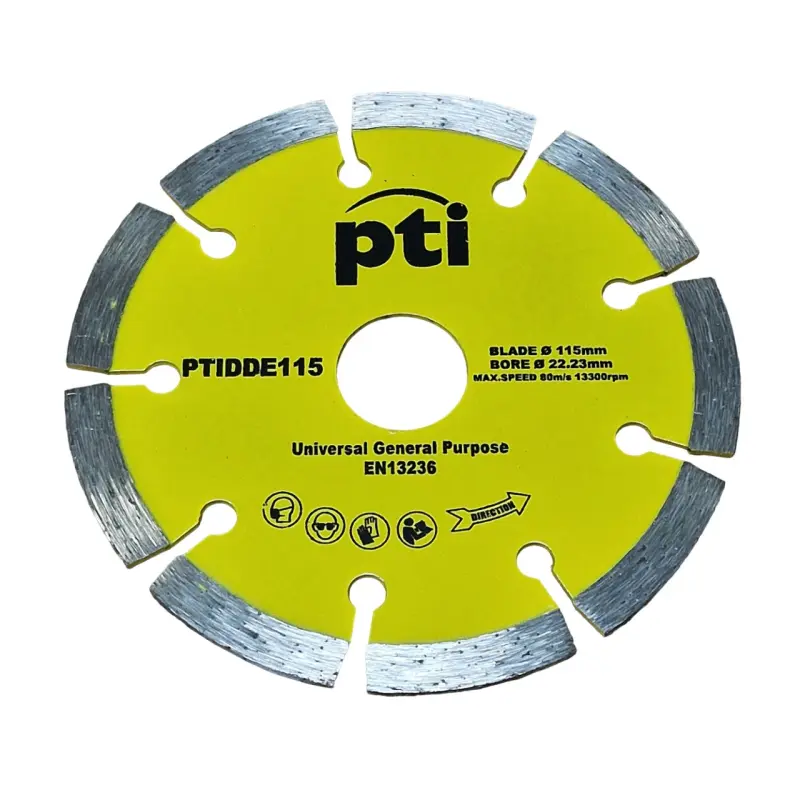

Contract Entry level diamond blade for the cost conscious user This General Purpose blade has sintered, diamond impregnated segments. Ideal for general cutting of concrete, paving slabs, breezeblocks and brickwork.
- Diameter: 115mm / 230mm
- Bore: 22.23mm
- Max Speed: 13300rpm/80ms
- Clean the flanges before mounting the blade and check for correct diameter
- Ensure the arrow on the blade corresponds with the direction of rotation of the machine spindle
- Ensure that the blade is balanced and running true
- Avoid tilting the blade when cutting
- Only use a machine that has an approved safety guard
- Do not apply pressure and force on your diamond blade through the cut
- The weight of the machine will suffice – increased pressure causes increased wear
- Do not let excessive heat be generated at the cutting edge of the blade
- Do not use your blade on metals or other unsuitable materials
PTIDDE115:
115.00mm
PTIDDE230:
230.00mm
